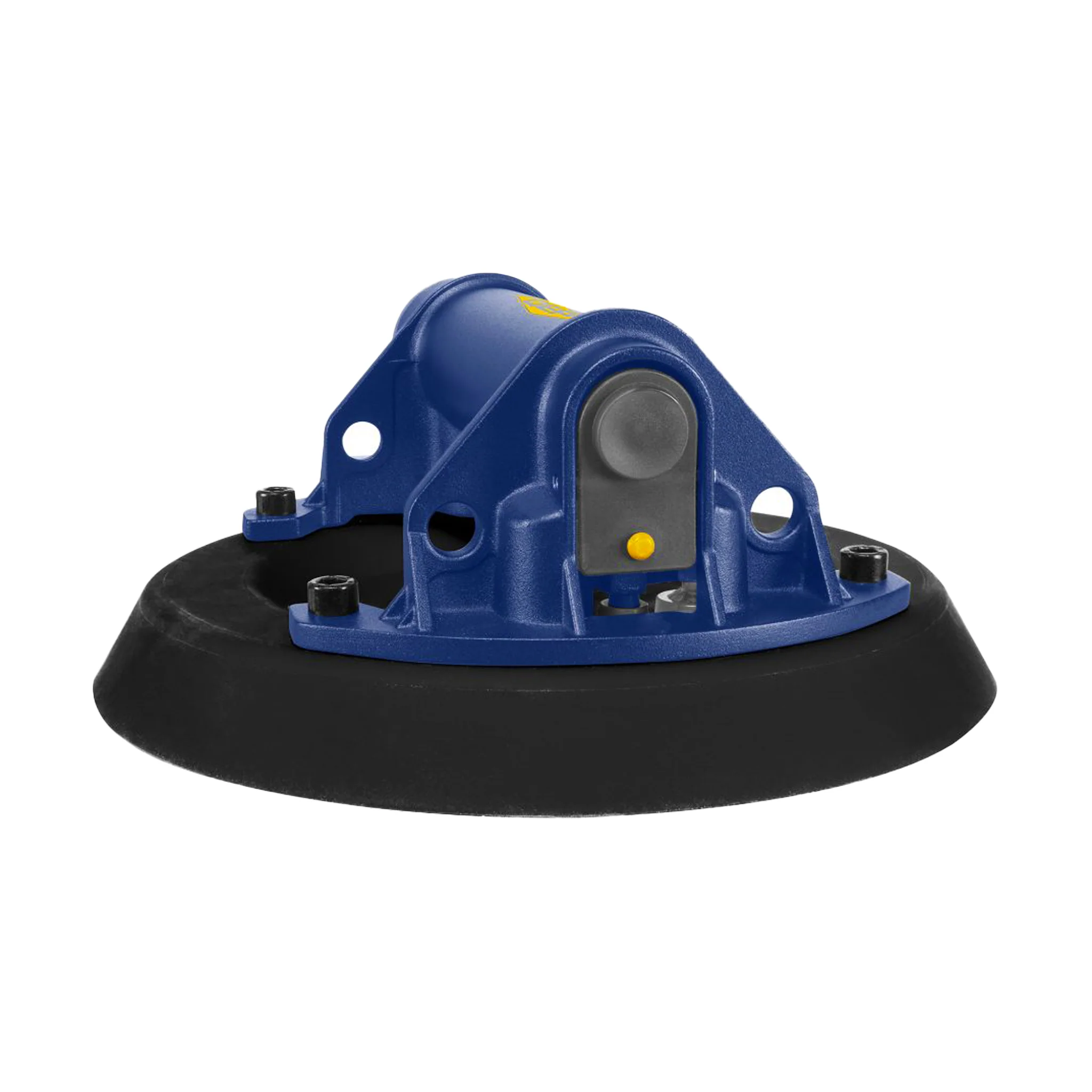

The QEP® Electric Suction Cup is a handheld lifting and positioning tool designed for non-porous materials such as large-format tile, stone, slabs, pavers, and glass. It provides controlled suction and lifting support for handling heavy materials during installation and transport.

The unit features a powered suction system with a non-return valve to help maintain consistent vacuum pressure, along with a digital display that shows battery status during operation.

Key Features

• Electric Suction Operation: Powered suction supports controlled lifting and positioning of non-porous materials.
• 264 lb. Lifting Capacity: Designed to lift and move heavy materials such as tile, stone, slabs, pavers, and glass.
• Non-Return Valve: Helps prevent air leakage to maintain steady suction during use.

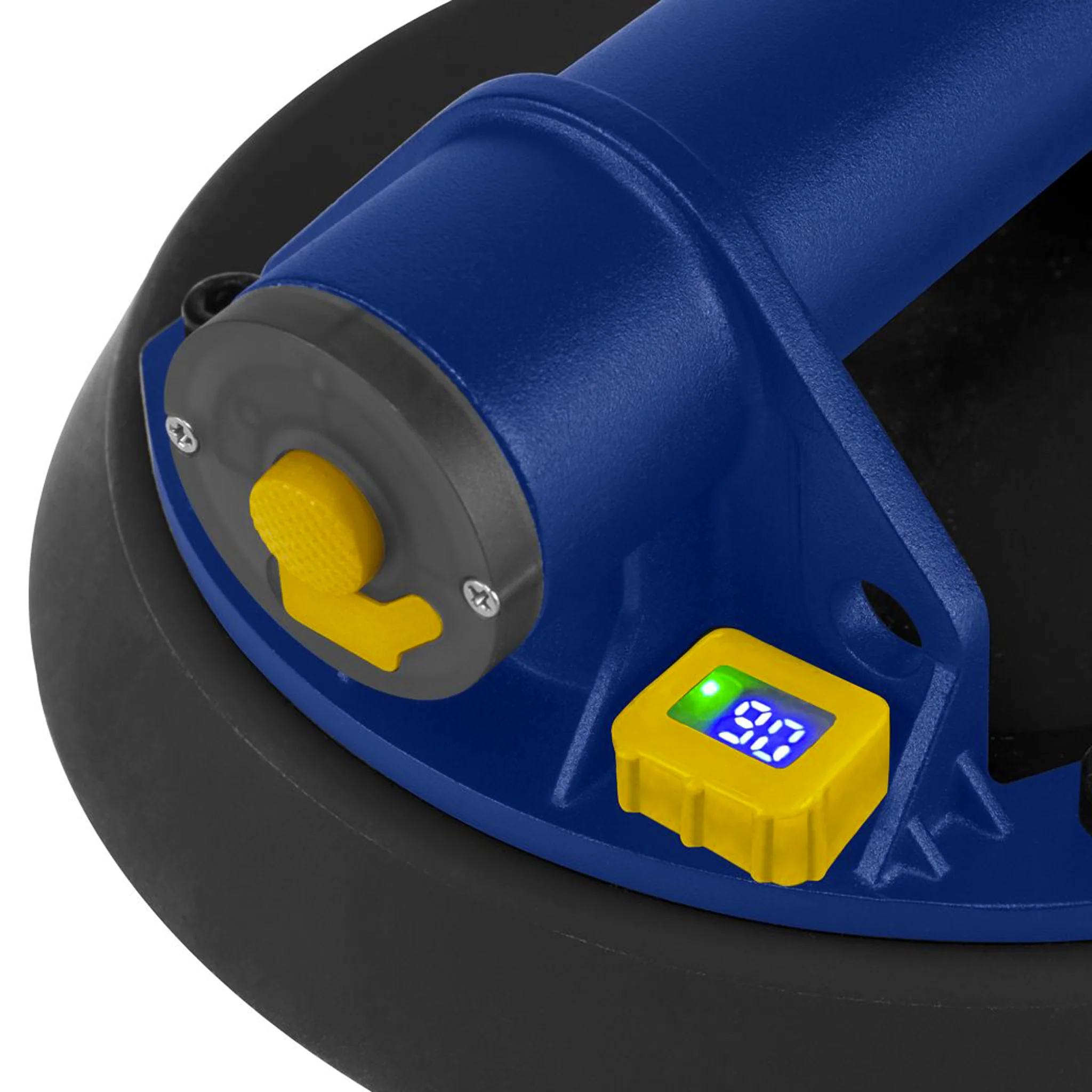

• Digital Battery Display: Displays battery level during operation, with visual indication when charging is required.
• Rechargeable Lithium Battery: Powered by a 3.7VDC 5000mAh Li-ion battery.
• Extended Operating Time: Supports up to 48 hours of continuous operation on a full charge.
• Portable Handheld Design: Compact and easy to carry for jobsite and material handling use.

Specifications

Specification	Details

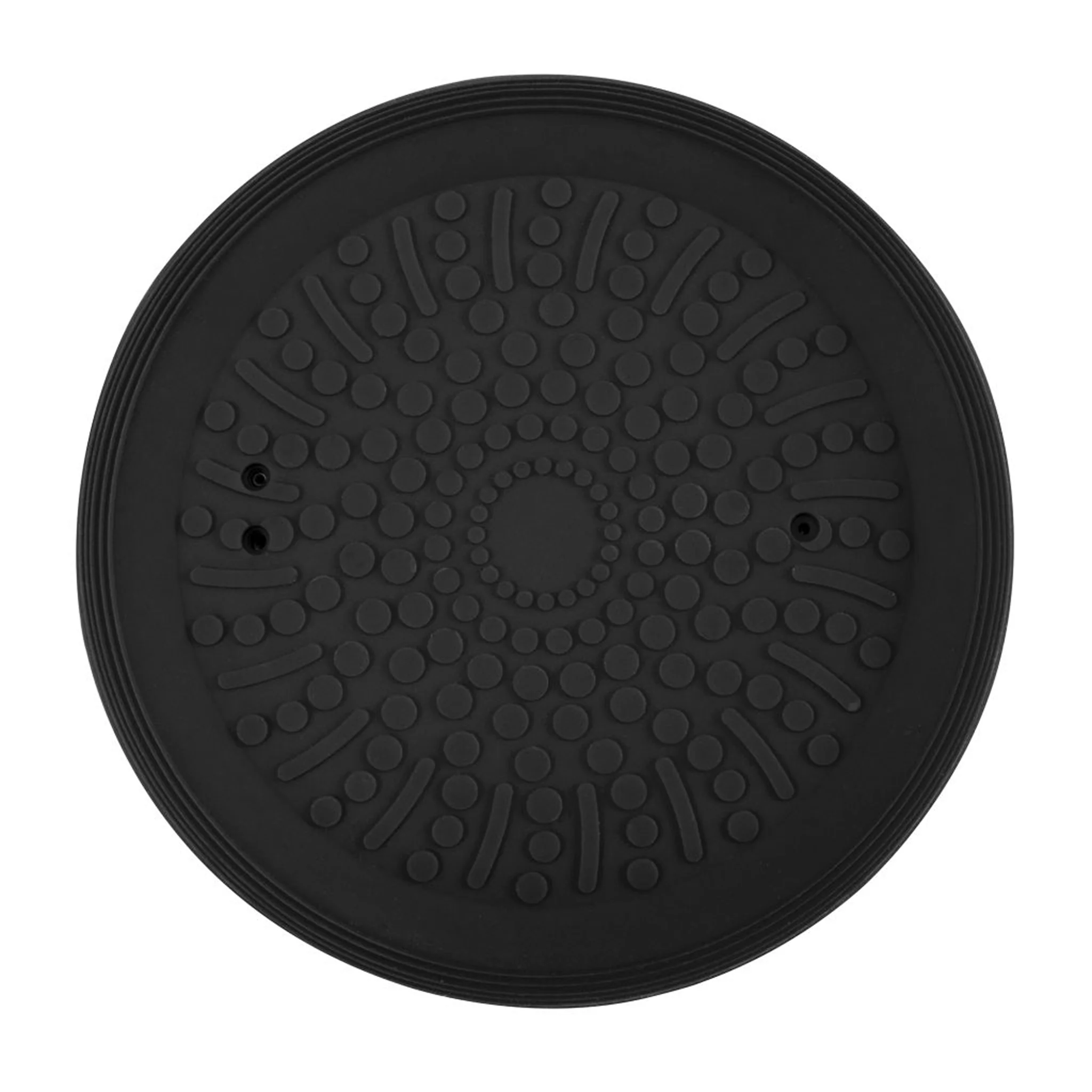

Cup Diameter	8 in.
Maximum Lifting Capacity	264 lbs
Battery	3.7VDC 5000mAh Li-ion rechargeable
Charging Time	6–8 hours
Operating Time	Up to 48 hours
Charging Port	USB-C

What’s Included

• Electric suction cup
• USB-C charging cable
• Rechargeable lithium battery
• Durable carrying case

The QEP® Electric Suction Cup provides powered suction support for lifting, moving, and positioning non-porous materials during installation, handling, and transport tasks.
