The Alpha® Ecoguard Type W5 is a dust collection cover designed for use with high-speed angle grinders when cutting with wider kerf diamond blades. Unlike models that use an internal dust bag, the Type W5 must be connected to a vacuum or external dust collection system to capture dust and debris during cutting operations.

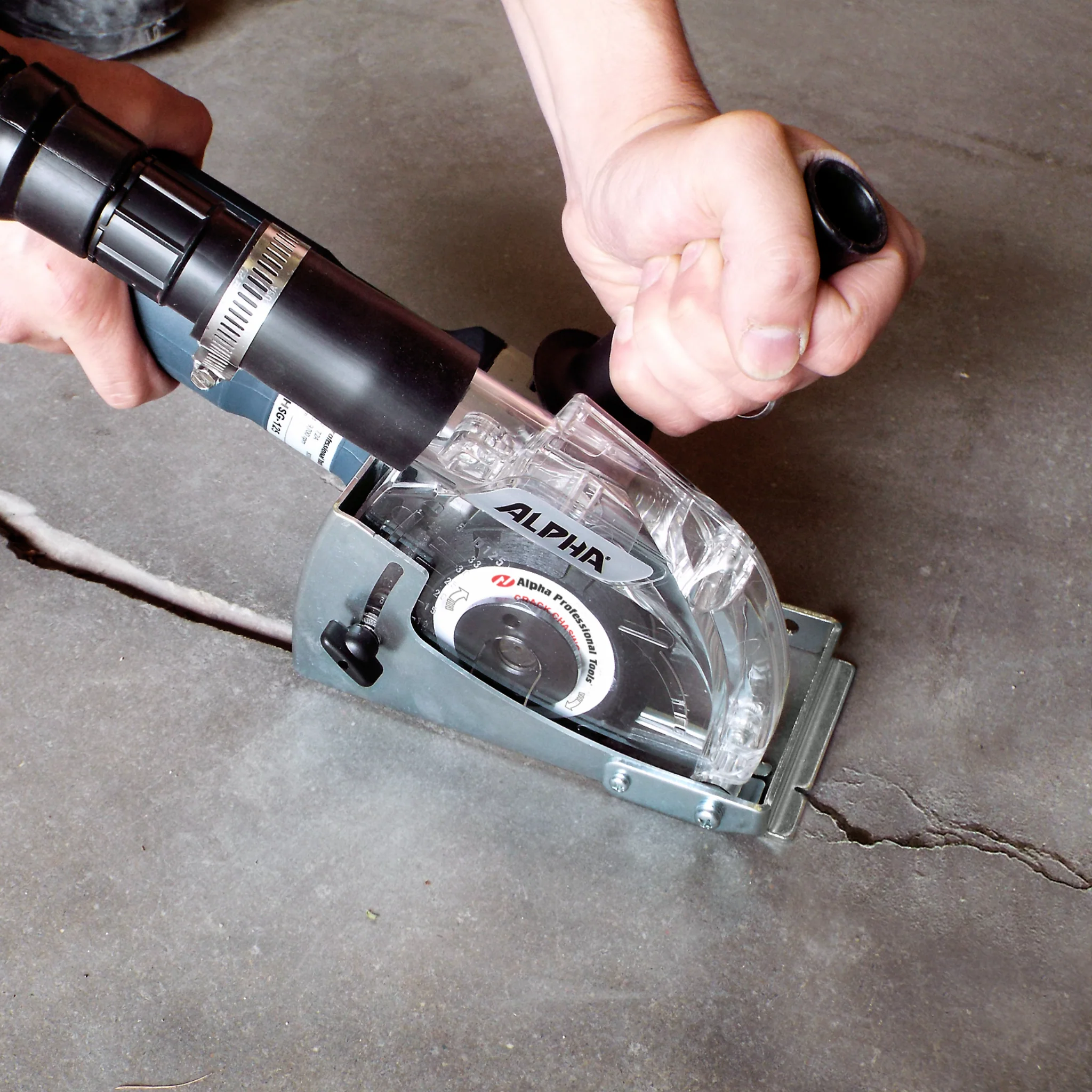

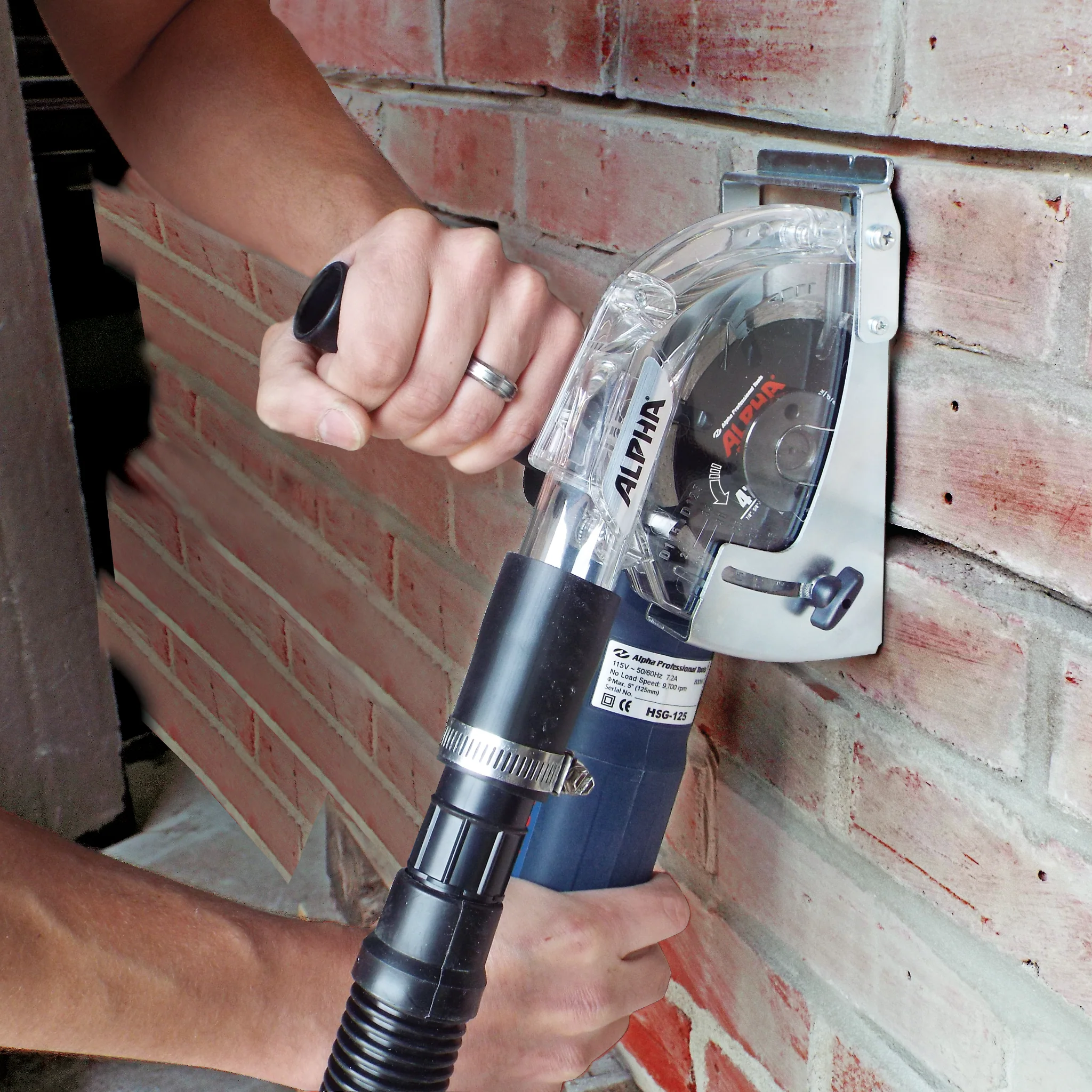

The Type W5 is intended for applications such as tuckpointing and crack chasing, where increased dust volume is generated. Its clear polycarbonate cover allows direct visibility of the blade and cutting area during operation, supporting accurate alignment and controlled cutting.

Key Features

• Vacuum-Based Dust Collection: Designed for use with a vacuum or dust collection system to capture dust and larger particles.
• Adjustable Cutting Depth: Depth adjustment controlled by a wing nut with a maximum cutting depth of 1-3/4".
• Nose Guide: Provides a visual reference for maintaining straight, precise cuts.

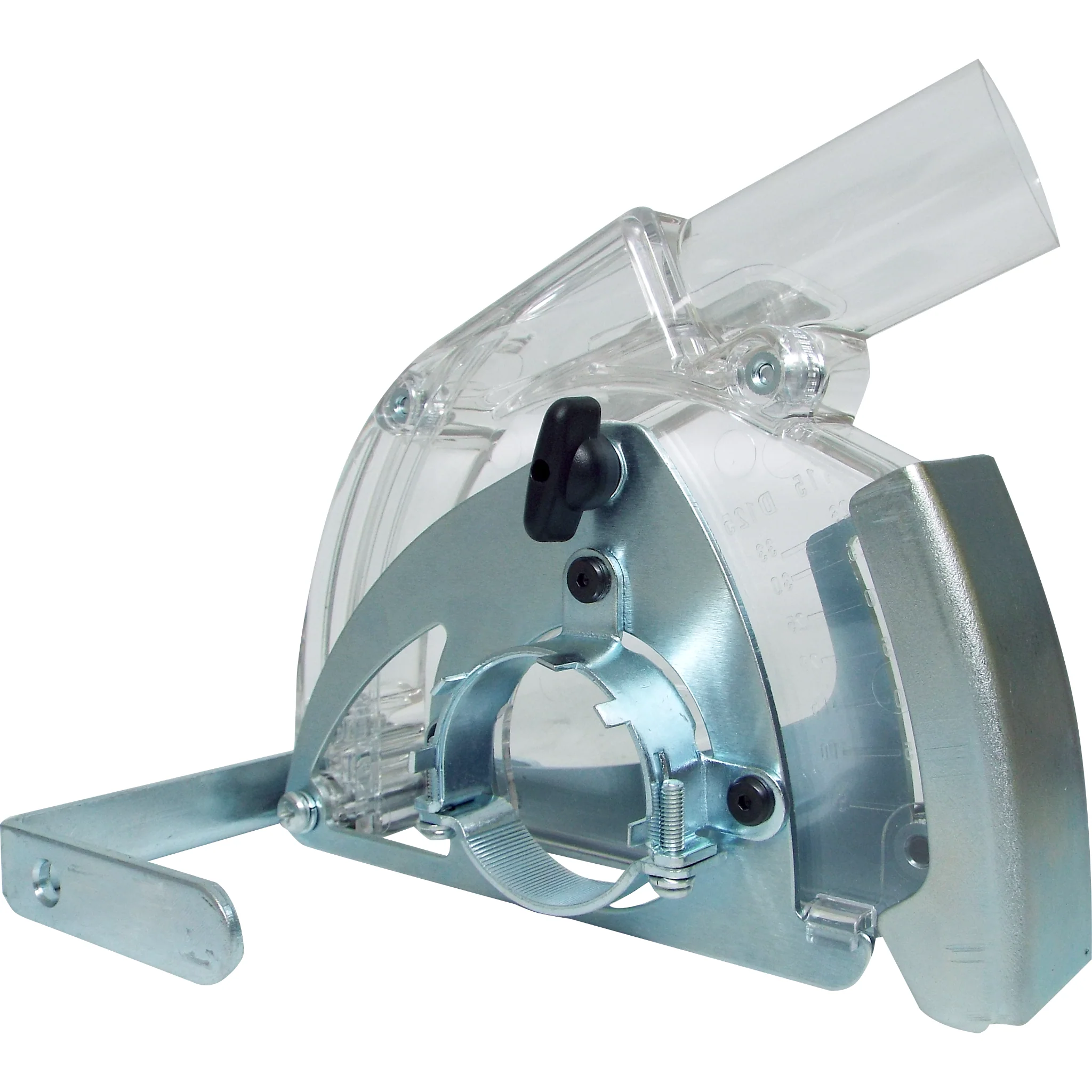

• Clear Polycarbonate Cover: Allows visibility of the blade and cutting area during operation.
• Support Base: Helps stabilize the grinder for controlled, straight cutting.
• Wide Grinder Compatibility: Fits most 4-1/2" and 5" high-speed angle grinders, with additional connectors included.
• Blade Capacity: Accepts diamond blades up to 5" in diameter.
• Rugged Construction: Built for heavy-duty cutting applications.

Specifications

Specification	Details
Tool Type	Dust collection cover
Compatible Grinder Sizes	4-1/2" and 5" angle grinders
Maximum Blade Diameter	5"
Maximum Cutting Depth	1-3/4"
Dust Collection Method	Vacuum required

The Alpha® Ecoguard Type W5 provides controlled dust and debris collection during tuckpointing and crack chasing operations when used with a compatible vacuum and high-speed angle grinder.
