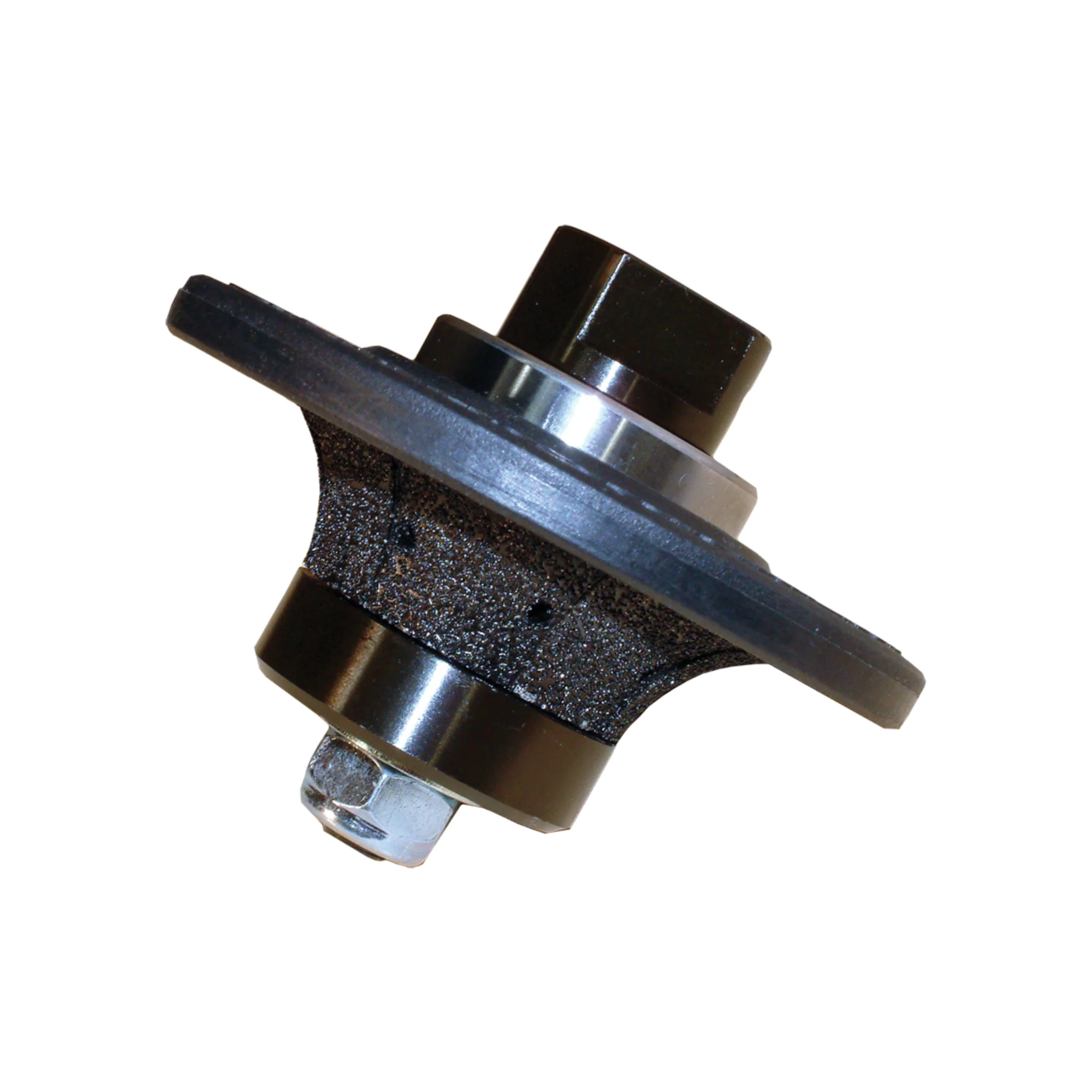

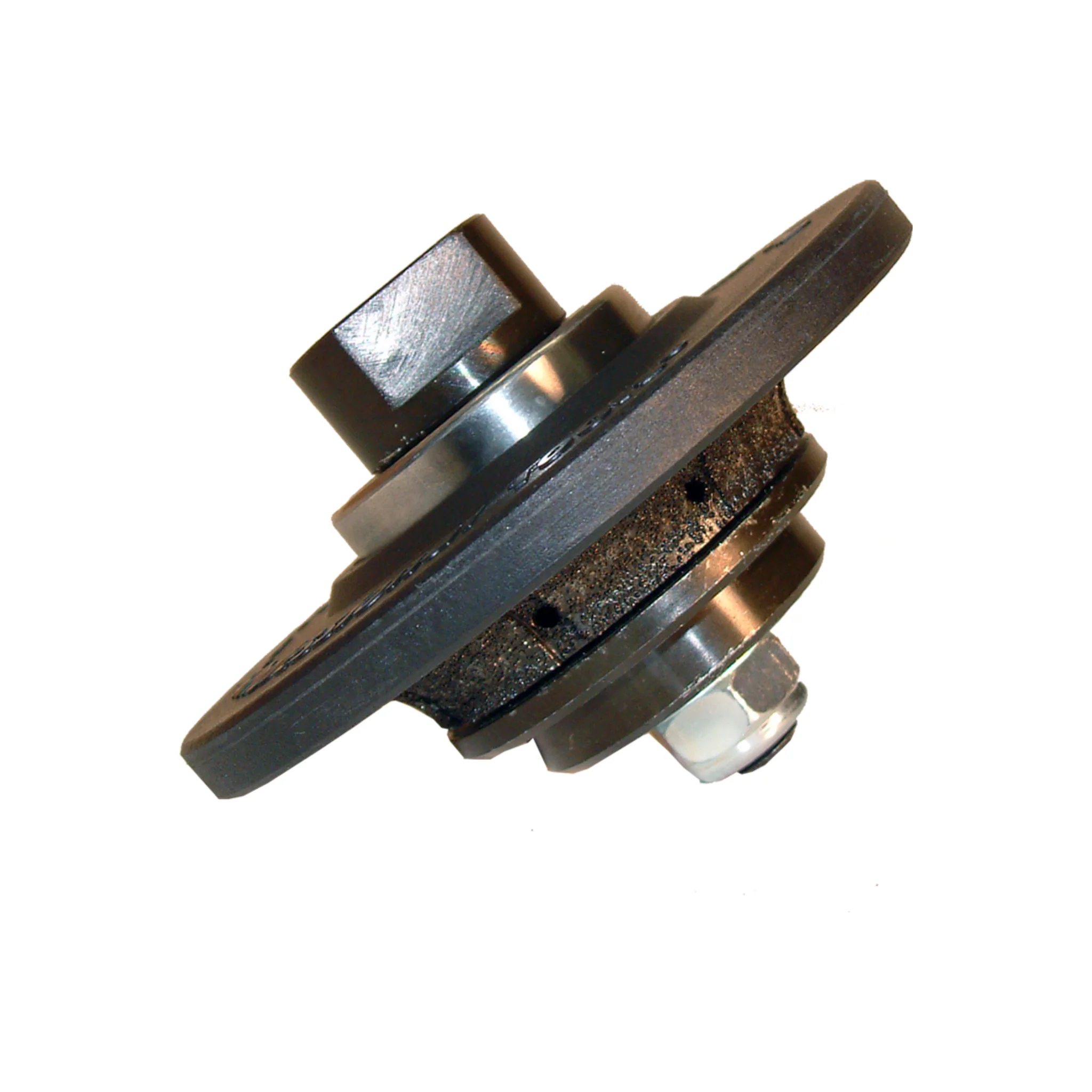

Alpha® Profiler B-Series is a wet-cutting profiling wheel designed to create consistent demi-bullnose and roundover edges on tile and slab materials. It is engineered to produce precise edge profiles in 3/16", 3/8", 1/2", and 3/4" sizes across a range of hard surfaces.

Manufactured using vacuum brazed diamond technology, the Profiler B-Series is built for controlled material removal on granite, engineered stone, concrete, crystallized glass, and porcelain.

Key Features

• Demi-Bullnose and Roundover Profiling: Designed to form consistent edge profiles in multiple radius sizes.
• Vacuum Brazed Diamond Construction: Optimized for harder materials requiring controlled, durable cutting performance.
• Nylon Guide and Rotary Touchier: Helps maintain a consistent depth of cut during profiling.
• Wet-Cutting Design: Internal water passage holes support water-fed operation.
• Standard 5/8"-11 Female Thread: Compatible with common center water-feed polishers.
• Polisher Compatibility: Fits AIR-680, AWP-158, VSP-320, and other water-fed polishers with matching threading.

Material Compatibility

• Granite
• Engineered stone
• Marble
• Concrete
• Crystallized glass
• Porcelain slabs
• Porcelain pavers

Specifications

Part Number	Size	Max RPM	Recommended Materials
PFB051	3/16"	3,500	Granite, Quartz, Concrete, Porcelain
PFB101	3/8"	3,500	Granite, Quartz, Concrete, Porcelain
PFB131	1/2"	3,500	Granite, Quartz, Concrete, Porcelain
PFB201	3/4"	3,500	Granite, Quartz, Concrete, Porcelain

Alpha® Profiler B-Series supports controlled, repeatable edge profiling for slab and tile fabrication using water-fed polishing equipment.
